产品型号：6.6寸中孔高清液晶显示屏
产品尺寸：6.6寸
产品类型：TFT
应用领域：仪器仪表、高端智能家居、手持终端等设备
|

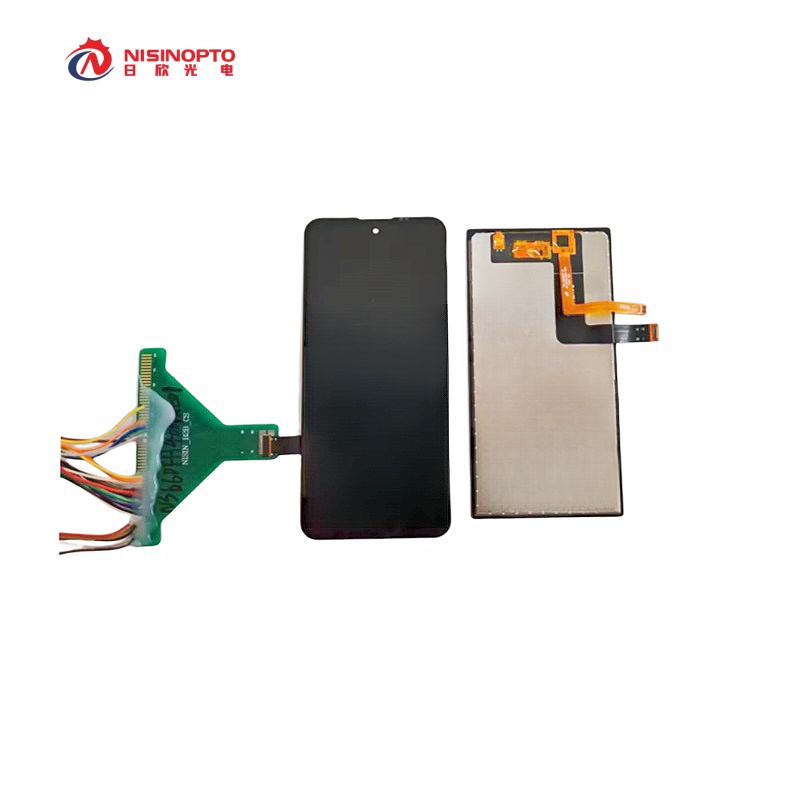

6.6寸 中孔液晶显示屏 6.6 inch Lcd Display |
分辨率 | Resolution | 1080*2400 20:9 |
| 支持接口 | Interface Type | MIPI | |
| 显示区尺寸 | Display area | 68.79 x 152.86(mm) | |
| LCM外形尺寸 | LCM Dimensions | 70.74*157.25*1.37(mm)，触摸外形可定制 | |
| 显示点间距 | Dot Pitch | 0.02123mm X 0.06369m | |
| 显示色彩 | color | 16.7M | |
| 对比度 | Contrast Ratio | 1000:1500 | |
| 响应时间 | Response time | 25ms | |
| 亮度 | Brightness | 500cd/m² | |
| 产品类型 | product type | TFT | |
| 显示类型 | Display Type | Normal Black | |
| 视角 | View Angle | U/D/L/R: 85/85/85/85 | |
| 触摸类型 | TP Type | INCELL | |
| 工作温度 | Operating temperature | -20℃~+70℃ | |
| 储存温度 | Storage temperature | -30℃~+80℃ | |
| 是否支持定制 | Customisation | Yes |
